Timbangan Truk RW-T

Timbangan Truk RW-T
Timbangan Truk RW-T

Overview

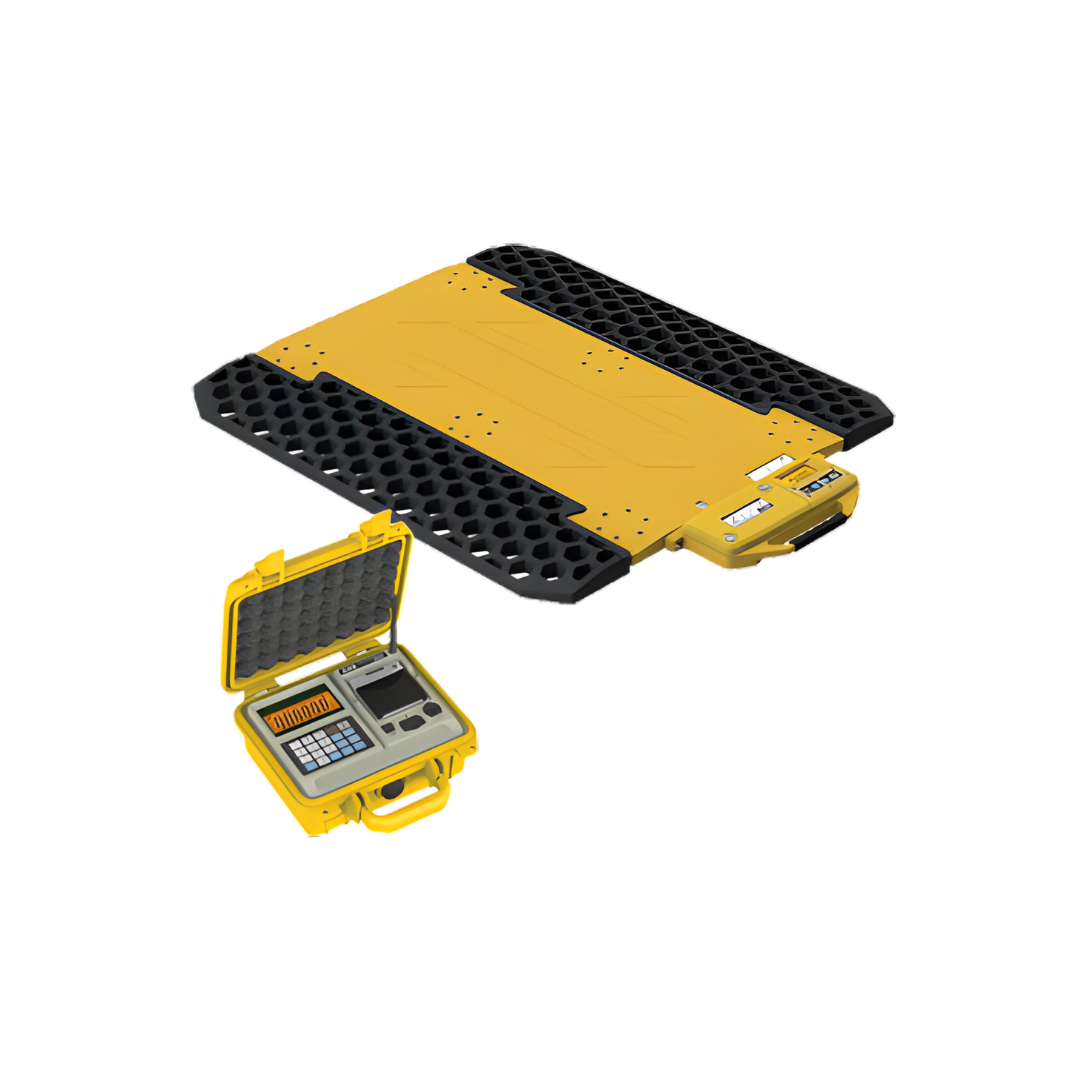

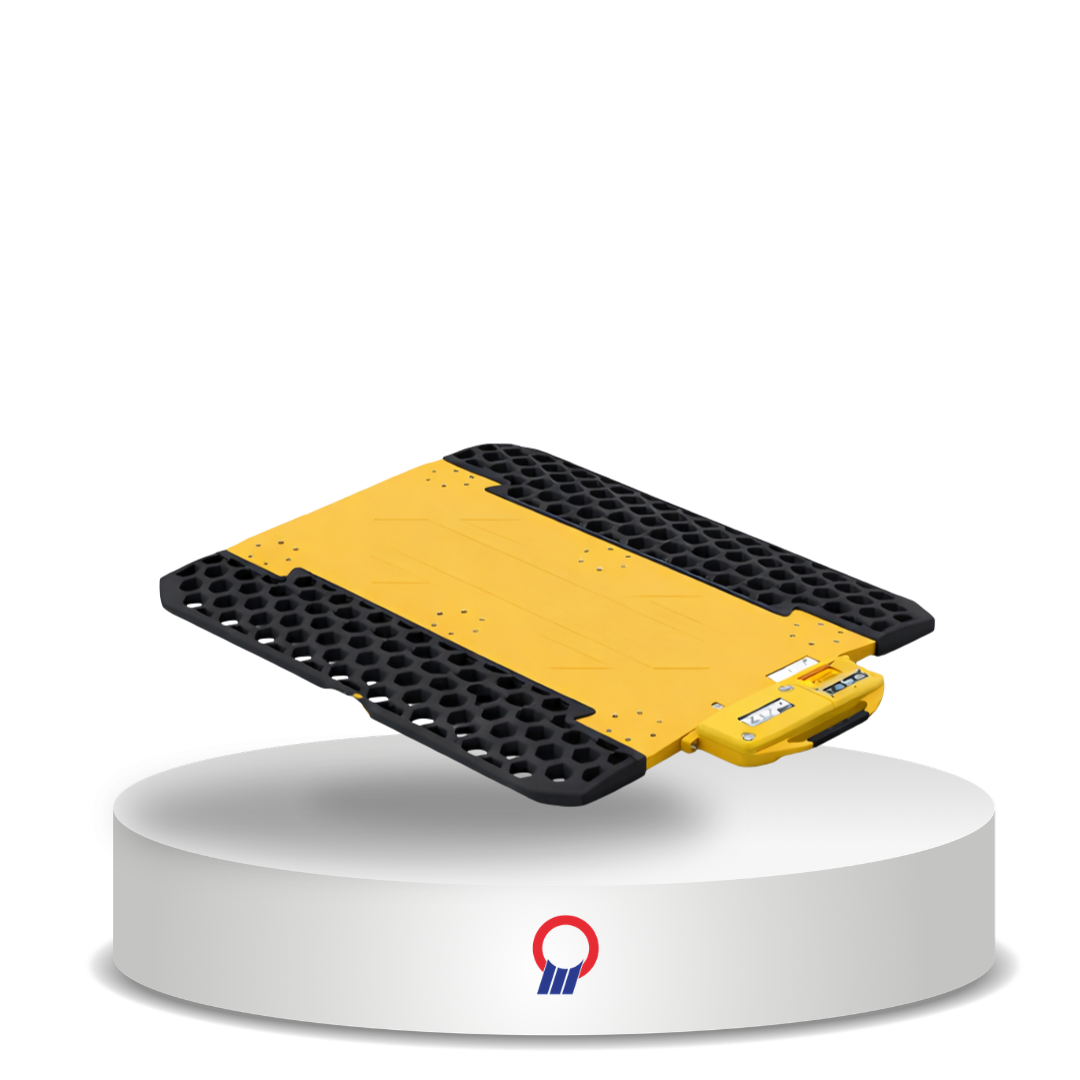

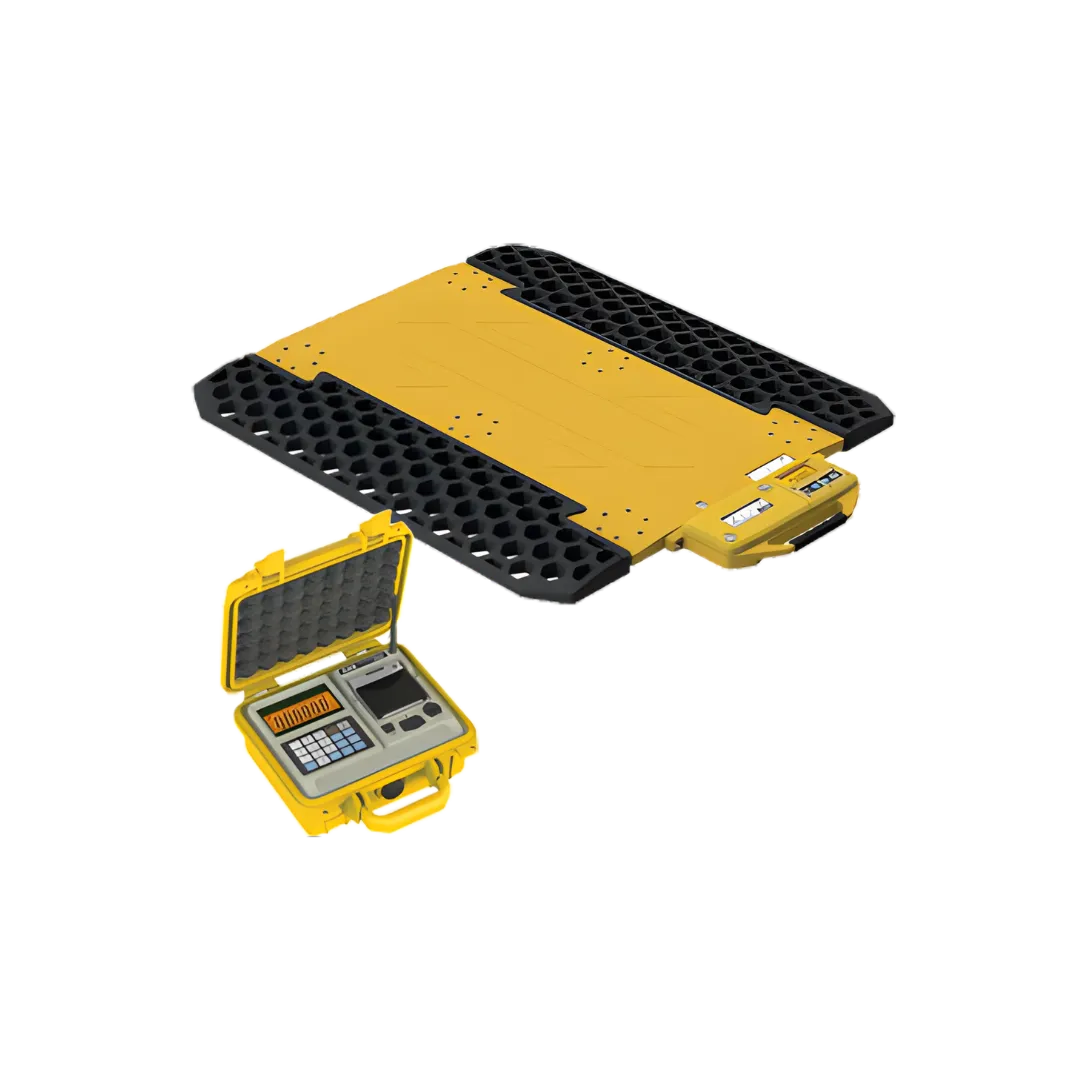

Seri CAS RW-T adalah timbangan kendaraan portabel yang mudah digunakan untuk menimbang kendaraan di jalan raya. Seri ini terdiri dari timbangan platform dan indikator, dan keduanya dirancang untuk tahan terhadap lingkungan yang keras.

Features

Waterproof structure Light and slim structure
Individual display on the Platform Easy Battery Change
Wireless Communication with RWT-5000F Static and Dynamic weighing (Weighing-In-Motion)
Option: Dummy Pad, Dummy Pad connector (Only for RWT-900F)
Portable Watertight Case 6-digit 20mm LCD display
Built-in thermal printer RS-232C for external divice & USB Port for weighing data back-up
10,000 vehicle weight data storage Weighing-In-Motion function
Wireless Communication System

Spesifications

TYPE 501F 502F 505F 705F 710F 715F 910F 915F 920F
Capacity (kg) 1,000 2,000 5,000 5,000 10,000 15,000 10,000 15,000 20,000
Division (kg) 1 2 5 5 10 20 10 20 20
Dimensions (mm) 674 x 532 x 50 886 x 730 x 50 1066 x 840 x 50 1066 x 940 x 50
Platform
Dimensions (mm)		 500 x 380 x 34 700 x 500 x 34 900 x 500 x 34 900 x 600 x 34
Weight (kg) 17 (Including The Ramp) 23.5 (Scale Only) 28.0 (Scale Only) 36.0
(Scale Only)
Ramp Weight (kg) – 1.6kg x 2EA 2.9kg x 2EA
Power 3.7V, 4A Lithium Polymer Battery
Battery Operating Time Approx. 90hr Approx. 70hr
Battery Charging Time Approx. 5hr
Communication Type Wireless Communication : Zigbee
Display 5digit LCD (height 15mm) back light
Key ON/OFF , ZERO , SUM , BACK LIGHT
Operating
Temperature		 -10 ˚C ~ 40˚C
Options – Dummy pad, Dummy Pad Connector (only for RWT-900F) Dummy Pad
