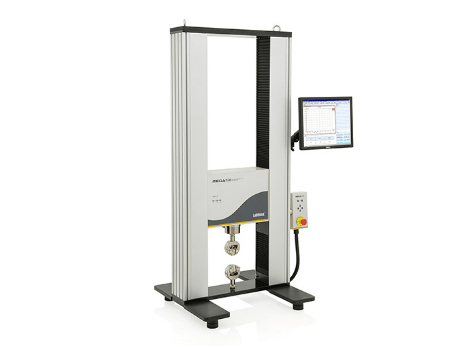

Universal Testing Machine i-Strentek 151

Universal Testing Machine i-Strentek 151

Universal Testing Machine i-Strentek 1510 secara profesional dirancang untuk penentuan sifat mekanik termasuk kekuatan tarik, kekuatan kulit, kekuatan sobek, kekuatan segel panas, daya rekat dan kinerja lentur film plastik, film komposit, bahan kemasan fleksibel, pita perekat, karet dan kertas, dll. Dapat juga digunakan untuk mengukur kinerja kompresi dan pelengkungan kotak bergelombang, kotak panel sarang lebah, tas kemasan fleksibel, wadah plastik (untuk minyak nabati atau air mineral), ember kertas, kaleng kertas, tempat apung terintegrasi (IBC ) dan wadah berlubang, dll.

Features

  • Multiple testing modes are available including tensile strength, deformation, peeling, tearing and compression resistance, etc. which can meet the testing demands of the customers
  • Statistical analysis on stress at definite elongation, elastic modulus and strain and stress are available
  • Double-column ball screw driving mechanism ensures high precision and steady working of the instrument
  • Compact and integrated design of the instrument can meet the requirements for various operating environments
  • Stepless speed change Note3 from 1 to 500mm/min can meet the requirements for various testing conditions
  • Multi-level over-travel protection, overload protect, automatic position reset and intelligent error alerts for safe test operation
  • The embedded computer controller system, with membrane switch is convenient for instrument operation
  • Embedded computer controlled system effectively guarantees the system security and the reliability of data management as well as test operation
  • The system is equipped with four USB ports and two net connection interfaces, which is convenient to data transmission
  • Professional operating software supports superposition analysis of test curves of group specimens and statistical analysis of maximum, minimum, average and standard deviation of test results
  • It supports Labthink exclusive DataShieldTM Note4 (Optional) , which provides the users with safe and reliable management of test data and test reports.

Test Standards

i-Strentek 1510 Universal testing machine conforms to the following standards:

ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM F88, ASTM F904, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB 14232.1-2004, GB 15811-2001, GB/T 1962.1-2001, GB 2637-1995, GB 15810-2001, QB/T 2358, QB/T 1130 , JIS P8113, YY0613-2007, YBB00042005,YBB00112004

Applications

Basic Applications
  • Tensile Test
  • Test of Tensile Strength and Elongation Rate
  • Test of Tensile Strength at Break
  • Tear Resistance Test
  • Heat Seal Strength Test
  • 90 Degree Peel Test
  • 180 Degree Peel Test
  • Compression Resistance Test
Extended Applications
(Additional Accessories Required)
  • Opening Resistance Test of Combined Covers
  • Tear Test of ZD – Type Caps
  • Opening Resistance Test of Oral Liquid Caps
  • 90 Degree Pullout Test of Infusion Bag Caps
  • Tear Test of Adhesive Binding Books
  • Tear Test of Adhesives
  • 23 Degree Pullout Test of Bottle Caps
  • Pullout Test of Closures of Infusion Bags
  • 90 Degree Peel Test
  • Adhesive Strength Test (hard)
  • 90 Degree Peel Test of Water-soluble Plasters
  • Opening Resistance Test of Jelly Cups and Yogurt Cups
  • Adhesive Strength Test (soft)
  • Pullout Test of Tooth Brush Hair
  • Peel Test of Flexible Tube Caps
  • Removal Force of Pipes and Pipe Joints
  • Pullout Test of Cosmetic Brush Hair
  • Pullout Test of Rubber Closures
  • Tensile Strength of Ropes at Break
  • Separating Force of Protection Films
  • Peel Test of Cup Films
  • Tear Test of Heatseal Films
  • 45 Degree Peel Test of Bottle Membranes
  • Tensile Strength of Zip-lock Bag Mouth
  • Peel Test of Release Paper
  • 135 Degree Peel Test of Plugs
  • Unwrapping Force of Adhesive Tapes
  • Tear Test Using Trouser Method
  • 20 Degree Peel Test
  • Peeling Grips of Floating Rollers
  • Eccentric Grips
  • Wide Sample Grips
  • Japanese Sample Grips
  • British Sample Grips
  • Compression Resistance Tests of Containers
  • Compression Resistance Tests of Sponge

Technical Specifications

Specifications i-Strentek 1510 Universal testing machine
Test Force Range 500N (Standard)
50N, 100N, 250N, 1kN, 2kN, 5kN, 10kN (Optional)
Accuracy 1% FS
Test Speed 1 ~ 500mm/min (Stepless Speed Change) Note3
Number of Specimens 1
Clamping Way Pneumatic Specimen Clamp
Stroke 800 mm
Gas Supply Pressure 0.5MPa ~ 0.7MPa (Outside of Supply Scope)
Port Size Φ6mm PU Tubing
Instrument Dimension 850 mm (L) x 700 mm (W) x 1630 mm (H)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Net Weight 150 kg

Configurations

Standard Configurations
Instrument, Professional Software, Pedal Switch, LCD Monitor, Keyboard, Mouse, Pneumatic Film Specimen Clamp
Optional Parts
Wedge-shape Sample Clamp (Manual), Sample Clamp for Compression Resistance Test, Lever-type Specimen Clamp (Pneumatic), DataShieldTM

Remarks:
Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.
Note 2: The described product features, test standards and configurations should be in line with Technical Specifications.
Note 3: The test speed should be integer in the range of 1 ~ 500.
Note 4: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be purchase as required.
