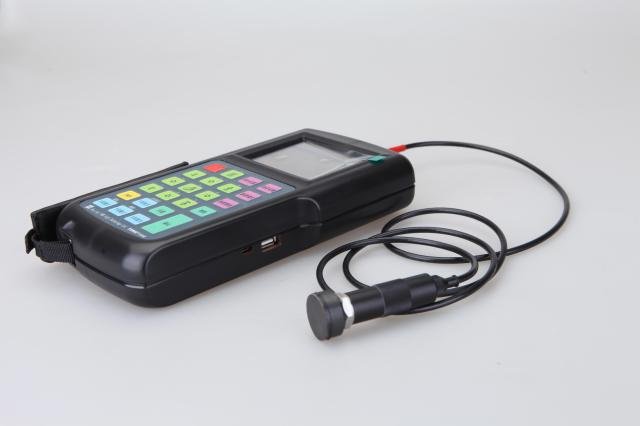

Vibration Tester TIME 7240

Vibration Tester TIME®7240

Features

● Three channels(CH1, CH2 and REV) available, the vibration of any two of the three directions (including X axis, Y axis and Z axis)can be tested.

● Five measuring modes: three parameters measuring (AVD mode), dynamic time, domain waveform (TIME mode), dynamic spectrum measurement (FFT mode), data sampling (Sample mode), rotation speed measurement (REV mode).

● The peak value of acceleration, velocity and peak to peak value of displacement are measured.

● Preset the filter’s cut-off frequency of pass band, frequency up to 100Hz.

● Dynamic display the vibration frequency and waveform in real time.

● Continuous data sampling last for 20 seconds

● Powerful data memory management: up to 50 points’infinite data, the measured data of each point is stored in files, users can review the vibration parameters, waveform, frequency data sampling and rotation speed.

● Connected with printer to print out measured data, waveform and spectrum chart.

● Photoelectric transducer for high accurate rotation speed

● Self-diagnosis for malfunction: Alarm sets off if test results out of warning line

● Safe and reliable long-life Li battery with self-protect equipment

● Color LCD display, auto shutdown and buzz alarming

Specification
