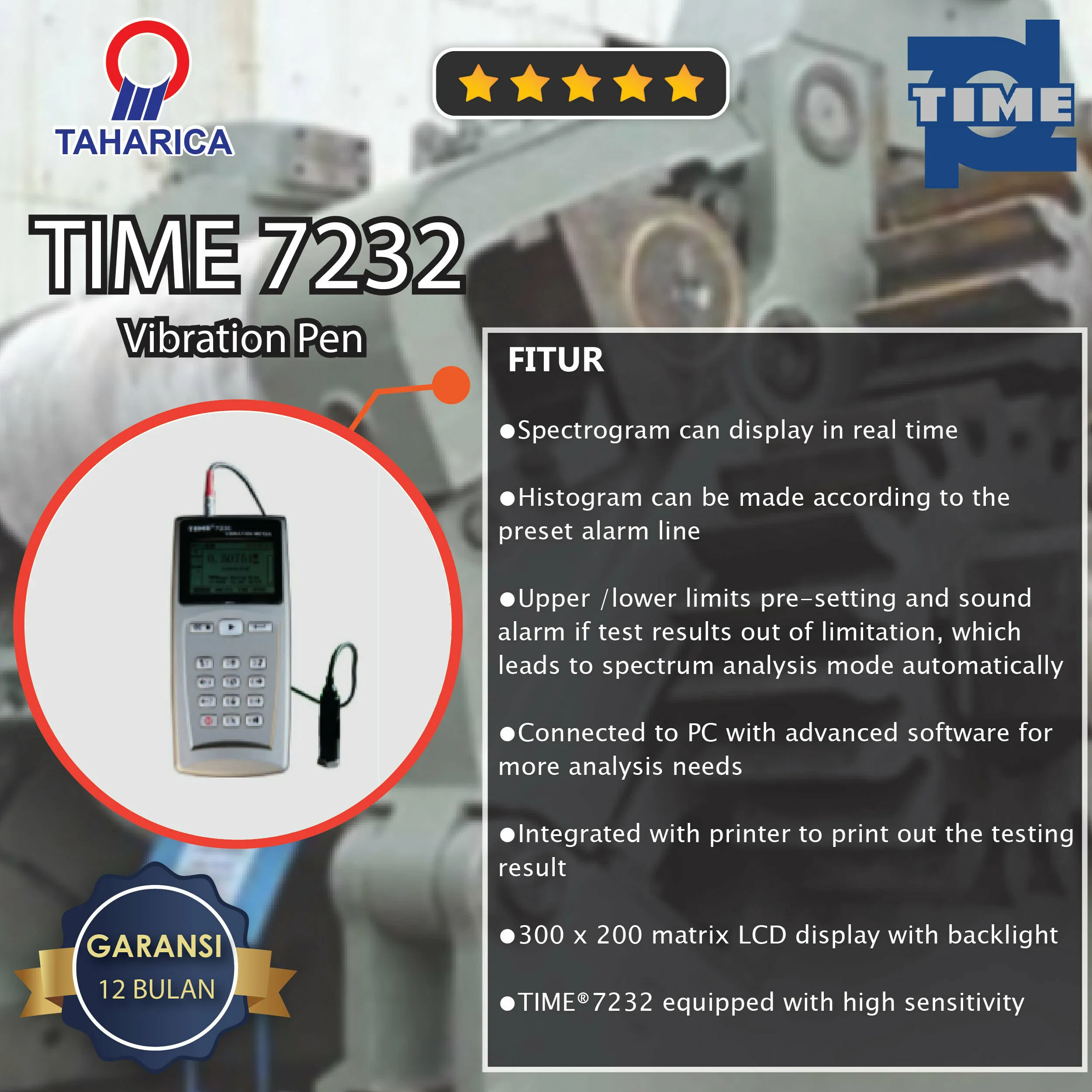

Vibration Tester TIME7232

Vibration Tester TIME7232

Vibration Tester TIME7232

Vibration Tester TIME7232

Feature

  •  TIME®7232 is equipped with high sensitivity probe, suitable for testing weak vibration signal.
  •  Two display modes: digital value mode and spectrum mode
  •  Large memory function:100×100 measured results(100 testing points, 100 data can be stored in each testing points 100 spectrograms
  •  Spectrograms can display in real time
  •  Easy diagnosis: alarm is sounded when vibration go over limit set ,and get into spectrum mode
  •  Testing results and spectrograms can be printed out when connected to printer
  •  320×200 matrix LCD display, with backlight

Specification



Model

TIME®7231

TIME®7232

Measuring range

Acceleration

1m2/s ~392m2/s (Peak)

0.1m2/s ~20 m2/s (Peak)

Velocity

0.1cm/s~80cm/s(RMS)

0.01cm/s~4cm/s(RMS)

Displacement

0.01mm~18.1mm (Peak-Peak)

0.001mm~0.8mm (Peak-Peak)

Frequency range

Acceleration

10Hz~200Hz、10Hz~500Hz、10Hz~1KHz、10Hz~10KHz

Velocity

10Hz~200Hz、10Hz~500Hz、10Hz~1KHz

Displacement

10Hz~200Hz , 10Hz~500Hz

Accuracy

±5%

Power

Li battery (continuous working 20 hours without backlight)

Temperature

0~40℃

Humidity

≤80%RH

Dimension(mm)

171× 78.5×28

Weight (g)

230
