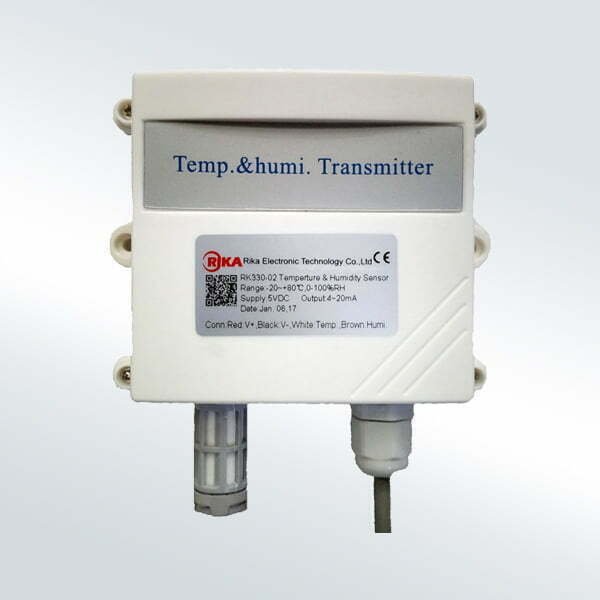

RK330-02 Atmospheric Temperature & Humidity Sensor adalah pengukuran profesional suhu udara dan kelembaban relatif. Elemen sensor adalah suhu dan kelembaban digital IC. Sensor dibangun di dalam penampungan anti air dan anti-UV. Ini banyak digunakan dalam pertanian, kehutanan, meteorologi serta ruang iklim, pergudangan dan tempat-tempat lain.
FITUR
* Sensitivitas tinggi
* Waktu respon yang cepat
* Kompensasi suhu otomatis
* Koreksi linear
* Instalasi mudah
* Layar LCD opsional
APLIKASI
* Pemantauan lingkungan
* Peternakan
* Penyimpanan
* Membangun kontrol otomatis
* Rumah Kaca
* Ruang telekomunikasi
TECHNICAL SPECIFICATION
|
Item |
Technical Specification |
|
|
Temperature |
Humidity |
|
| Range |
-30~+70℃, 0~50°C |
0-100%RH |
| Accuracy | ±0.3°C@25°C | ±3%RH(10%-90%) |
| Repeatability | ±0.1°C | 0.1%RH |
| Long-term Stability |
<0.04℃/Year |
<0.5%RH/Year |
| Response Time | <1s | |
| Supply |
5VCD,12-24VDC |
|
| Output Signal |
RS485 MODBUS(RTU) |
|
| Display(universal) |
LCD is optional |
|
| Current Consumption |
<20mA |
|
| Operating Temperature |
-40℃-+70℃ |
|
| Ingress Protection |
IP65 |
|
| Storage |
10-60℃@20%-90%RH |
|
| Weight(unpacked) |
170g |
|
| Dimension |
117*86*41mm |
|
| Shelter material |
ABS |
|
MOUNTING
Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause measurement inaccuracies.
PARAMETER SELECTION TABLE
|
Remark |
Series |
Type |
Supply |
Output |
Display |
Cable Length |
|
|
RK |
|
|
|
|
|
|
|
|
|
330 |
|
|
|
|
|
|
|
|
|
02 |
|
|
|
|
|
| A | 5V | ||||||
| B | 12-24V | ||||||
| X | Other | ||||||
|
|
|
|
A |
|
|
4-20mA |
|
|
|
|
|
B |
|
|
0-5V |
|
|
|
|
|
C |
|
|
0-10V |
|
|
|
|
|
D |
|
|
RS485 |
|
|
|
|
|
X |
|
|
Other |
|
|
|
|
|
|
A |
|
With display |
|
|
|
|
|
|
N |
|
Without display |
|
|
|
|
|
|
|
2000 |
Units:mm（typ.） |
|
|
|
|
|
|
|
3000 |
Units:mm |
|
|
|
|
|
|
|
… |
Units:mm |
Example: RK330-02BAN2000 Supply:12-24V Output:4-20mA, Without display,Cable Length:2m
