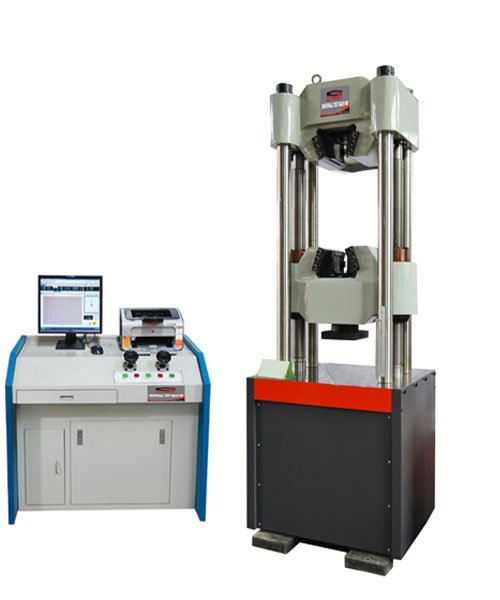

WEW-300D/600D microcomputer screen display hydraulic universal testing machine

WEW-300D/600D microcomputer screen display hydraulic universal testing machine

WEW-300D microcomputer screen display hydraulic universal testing machine is mainly used for tensile, compression, bending, shearing and other tests of metal materials, adding simple accessories and devices, and also for wood, cement, concrete, rubber and their products. experimenting.

Function and structure

  • WEW-300D microcomputer screen display hydraulic universal testing machine is mainly used for tensile, compression, bending, shearing and other tests of metal materials, adding simple accessories and devices, and also for wood, cement, concrete, rubber and their products. experimenting.
  • The main engine adopts the under-cylinder structure of the cylinder, the stretching space is located above the main machine, and the compression and bending test space is located between the lower beam and the table below the mainframe. The test space is adjusted by the movement of the lower beam, and the motor is used through the reducer and the chain transmission mechanism. , screw drive.
  • The force measuring mechanism adopts the sensor force measurement, and uses the microcomputer screen display system independently developed by the company to display the test force, peak value, deformation and various test curves. It can print various test reports (requires special customization), and users can edit it themselves. The format of the test report.



Spesification

Serial number Technical name WEW-300D WEW-600D WEW-1000D
1 Maximum test forcekN 300 600 1000
2 Test force indication relative error ≤ indication of ± 1%
3 Test force measurement range 2% to 100% of the maximum test force
4 Clamping method Hydraulic clamping
5 Round sample clamping diameter mm Φ10~Φ32 Φ13~Φ40 Φ13~Φ60
6 Flat specimen clamping thicknessmm 0~15 0~30 0~40
7 Flat specimen clamping width mm 80 125
8 Maximum tensile test space mm 650 650 600
9 Maximum compression test space mm 550 550 470
10 Control cabinet dimensions mm 610×700×1100
11 Mainframe dimensions (including piston stroke) mm 840 × 620 × 2210 950×900×2510
12 Host quality kg 1600 1600 5000
13 Upper and lower platen size mm Φ160 204×204
14 Bending roller spacing mm 350 600 800
15 Bending roller widthmm 140 140
16 Allowable bendingmm 100 150
17 Shear sample diametermm Φ10
18 Maximum stroke of the piston mm 200 250
19 Piston maximum moving speed mm/min About 70 About 50
20 Test space adjustment mechanism Motor reducer sprocket chain drive
